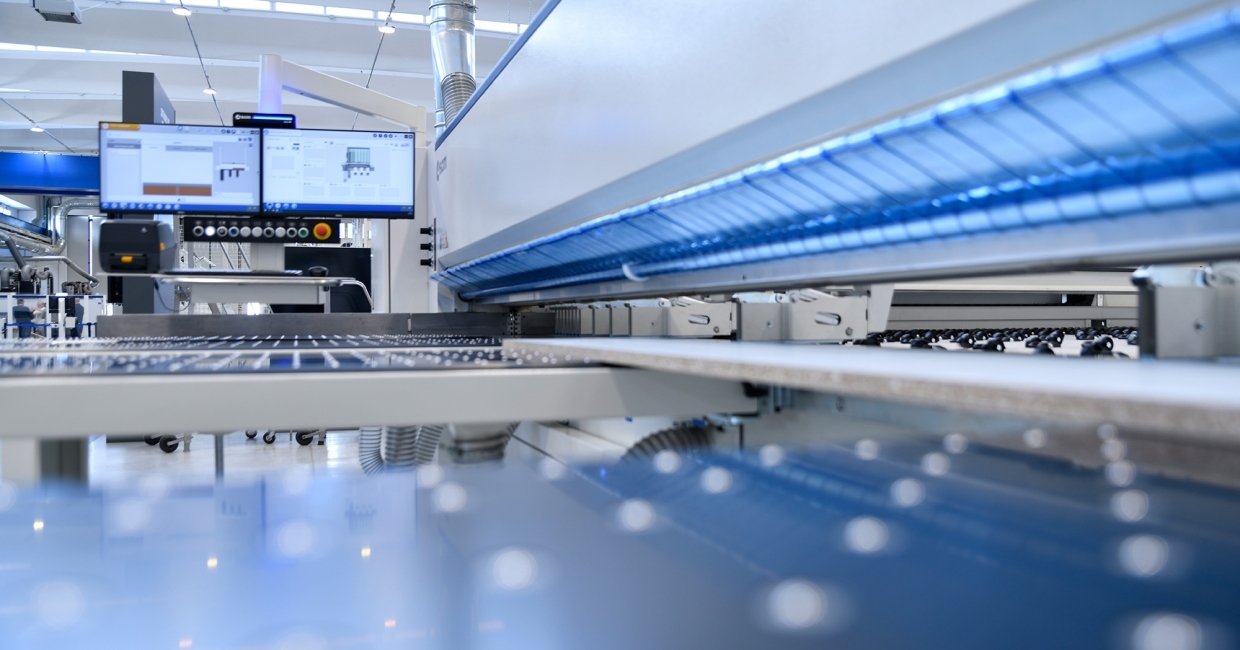

The new range of “gabbiani p” and “gabbiani pt” panel saws has been renewed and expanded with the new p60, p80, p95, and pt80 and pt95 models, developed for both batch one and mass production.
These automated machines are accessible to all users thanks to guiding technology, which makes the production process both intuitive and safe. Suitable for cutting panels of wood and its derivatives (chipboard, MDF, plywood, multilayer and fibre), these new models are equipped with all the higher-end features and options that the market demands.
Just some of their key features include:
FLEXCUT 1/S: Allows more cuts in less time. High performance is achieved through the use of two fully independent pushers. A dramatic reduction in machine cycle time can be achieved due to the simultaneous processing of multiple bars with differentiated cuts (with a maximum of two side-by-side 600mm bars).
Cutting with high finishes up to 50 m/min thanks to blade motors with power up to 18.5 kW.
LED indicators of both front and rear loading in the presence of lifting table: an intelligent led bar system guides the user during the processing stages for intuitive and safe production monitoring. In the version with the lifting table, the system guides the user to the correct forklift loading of the panel stack and signals the need for a stack change.
LED device for guided positioning of movable air floating tables: an intelligent LED system that indicates to the user the correct positioning of the movable air floating tables with respect to the format of the panels being processed.
Angular cutting device provides for the inclination of the squaring guide by handwheel and automatic positioning at the panel dimension by a linear stop positioned on the main pusher.
The key words of this new project are productivity, quality and competitiveness.
