The latest EDGETEQ S-500 edge banders and LOOPTEQ automated workpiece return systems from HOMAG combine to offer more flexibility and cutting-edge technology for fast, efficient and reliable production. With the ability to use PUR, EVA or airTec edge fixing solutions, the S-500 edge banders provide complete versatility. Furthermore, used in conjunction with one of the LOOPTEQ series workpiece return systems, the edge bander can be operated by a single person, further streamlining the manufacturing process.
“If you’re looking for an edge bander that has minimum set up time, a choice of gluing options, delivers premium quality edging and trimming, and can easily handle high-gloss surfaces or lightweight panels, the EDGETEQ S-500 could be the answer,” claims HOMAG UK’s edge banding expert, Charles Smith. He continues, “To achieve the perfect edge quality, workpieces need to be fed into the machine precisely.
“HOMAG has a range of options to achieve this, such as infeed fences, blocks, sliding carriages and workpiece supports. These options help ensure the very best edge finishes possible are consistently accomplished.”
Advanced trimming units on the EDGETEQ S-500 edge bander range
The EDGETEQ S-500 now offers more flexibility due to the extended range of trimming units available. The MS40 multi-level trimming unit, the MF60 Servotrim multifunction profile trimming unit and the MN11 profile scraper for two profiles can now be specified on the EDGETEQ S-500. They provide access to an even wider array of production possibilities.
Premium quality trimming is achieved thanks to vibration-free rotation and long tool service life achieved with the HSK interfaces for the post-processing units. Setup times are also minimised due to three-profile technology for the four-motor FF32 profile trimming unit and automatic adjustment of the glue joint scraper.
“Combined with the appropriate LOOPTEQ return system, the EDGETEQ S-500 edge banders can provide a step-change for furniture manufacturing businesses, increasing flexibility, throughput, finish quality and profit”
A choice of edge gluing technologies
The method of fixing edges to panels defines the quality and capabilities of the finished furniture. The EDGETEQ S-500 provides the option of using the standard EVA glue, PUR for a stronger, more moisture/heat resistant bond or HOMAG’s airTec zero joint technology.
With the AG12 and AG12 Basic gluing units, the application unit for hot-melt glue can be emptied easily in the machine. Cleaning time too is reduced due to the pneumatic metering slides on the application unit for hot-melt glue. These close automatically preventing dirt and reducing the amount of cleaning required.
At the centre of the airTec unit is a rotating fan heater which, in addition to a high level of efficiency, provides a significantly reduced noise output. All laser-compatible edging types currently available can be processed with airTec. This offers increased versatility for materials and colours.
The airTec system delivers increased efficiency and minimises resource usage with the even air flow ensuring a high quality, zero joint at all times. Rapid changeover times between airTec and traditional gluing technology helps improve productivity further and it is all controlled via the intuitive powerTouch2 control screen.
Increased productivity with LOOPTEQ automated return systems
LOOPTEQ return systems are designed to optimise the entire edging process in furniture production. The material flow is automated and ordered, making the edge banding machine more efficient. The result is a leaner manufacturing process regardless of whether it is batch size 1 customer-specific orders, or high volume work.

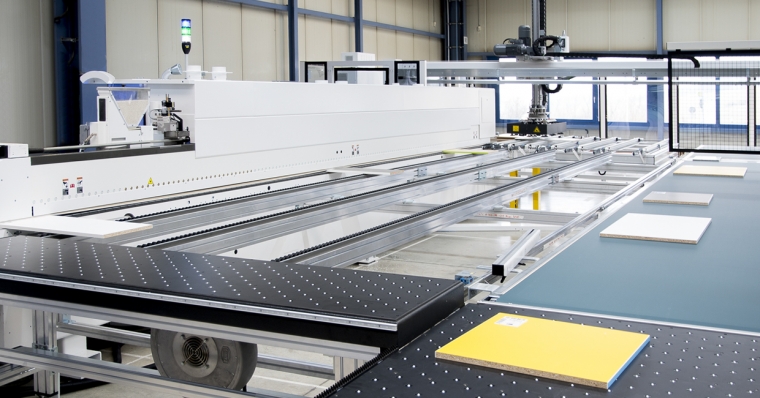

The LOOPTEQ return systems enable one person to operate the edge banding cell easily. With a single or dual transfer gantry, parts are turned and transferred accordingly, supplied to the edge banding machine or ejected from the process. Workpieces with finished edging are transported out or can be stacked ready for the ongoing processes.
A further advantage of LOOPTEQ return systems is the virtual elimination of workpiece damage caused through manual handling. The return systems can handle a wide range of parts, from small, lightweight panels to large heavyweight workpieces. Even delicate surfaces such as those with an aluminium or stainless steel look can be handled without problems.
Expandable, efficient, premium quality edge banding
Charles Smith again, “The EDGETEQ S-500 and S-500 profiLine machines provide a significant level of futureproofing for businesses. The machines are easier to expand offering more protection for the investment. The profiLine models offer an even greater choice of configurations further increasing versatility.
“Combined with the appropriate LOOPTEQ return system, the EDGETEQ S-500 edge banders can provide a step-change for furniture manufacturing businesses, increasing flexibility, throughput, finish quality and profit,” concludes Charles.
For more information or a demonstration of any of the HOMAG machinery and software, contact Adele Hunt at HOMAG UK on 01332 856424.
