Elfin Collaborative Robot: provide flexible and reliable support for automation industry

As industry today strives for more efficiency, increased output and reduced costs, Motion Control Products has introduced the next generation of Elfin series six-axis collaborative robots to support the automation procedures associated with repetitive tasks.

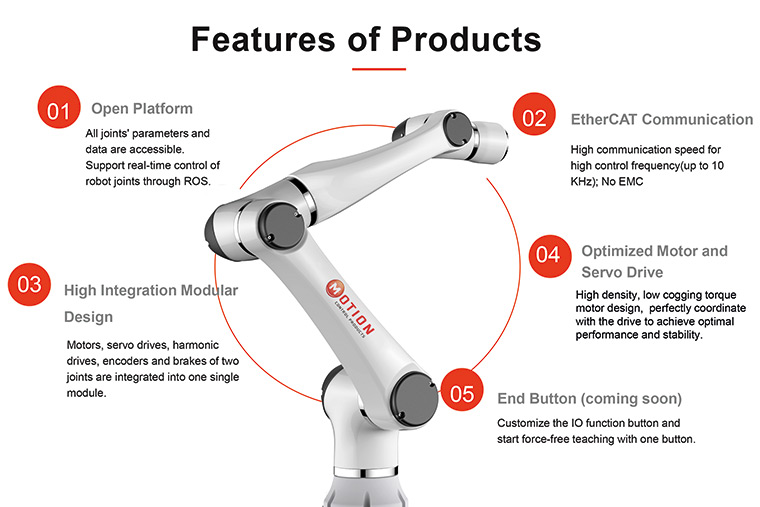

The Elfin robot arm system integrates the motors, harmonic gearboxes, brakes, feedback devices/sensors, drives and cables into a compact structure. This achieves high precision and flexible automation control in six-axis of rotation, each with a full 360˚ of movement. Our cobots features high accuracy positioning up to ±0.05mm with the speed up to 90° per second. It has a default force setting to ensure that it will automatically stop when encountering an unexpected obstacle.

Elfin series collaborative robot weighs from 17kg to 40kg with a standard working load capacity of 3kg (Model E3), 5kg (Model E5) and 10kg (Model E10), which ensures that there is a product offering for a wide range of applications.

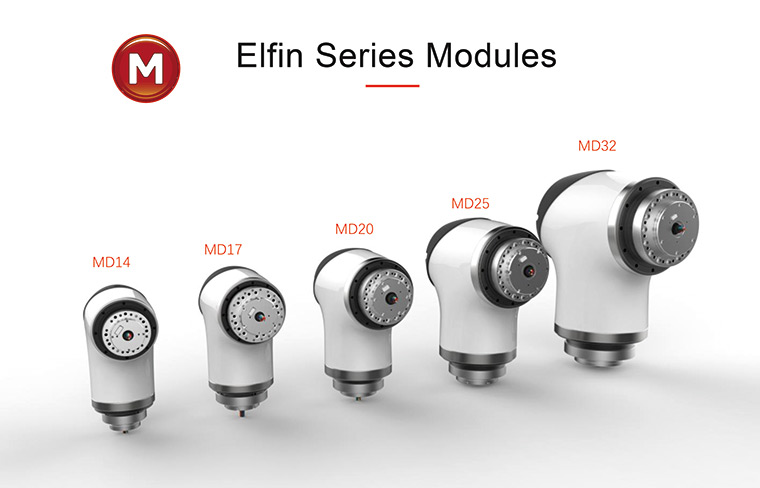

With EtherCAT bus communication and highly integrated modular design, our cobot is compact, is easy to programme via a control panel for multiple Elfin robots and offers the user a fast set up solution and real-time control under the most open ROS platform.

Motion Control Products are available to support the user through correct specification, commissioning and training if necessary, thus ensuring that the collaboration in the work-place is optimised and safe. Our technical staff can also provide customers with an accurate payback period, which is often surprisingly fast. This can then relieve existing manual staff from often dull, repetitive tasks to enable them to support the company in more challenging roles.

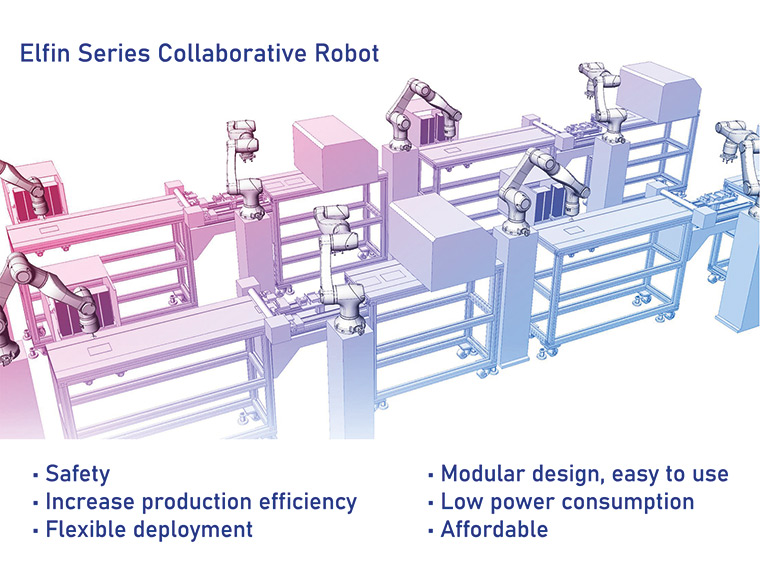

The three robot arms are desktop or surface mounted system, and have a working range up to a maximum of 1000mm and a working life of 35000 hours. Typical examples of where you can consider the use of collaborative robots would include CNC pick and place, screw driving, painting, polishing, welding, gluing, palletising/packing and assembly and more. Elfin robot series support installation at any angle.

Redeployment requires only a very short period of time. It is very suitable for small batches, customised, short-cycle production and is the best choice for automation. The product conforms to ISO/TS15066 and can be safely used alongside your workforce with no safety guarding once a risk assessment has been completed.

01202 599922
www.motioncontrolproducts.com
