For manufacturers working with shaped components, edge banding can present a particular challenge. Conventional machines are designed around straight workpieces, while more specialised solutions for shaped panels can be difficult to justify for businesses processing smaller quantities.

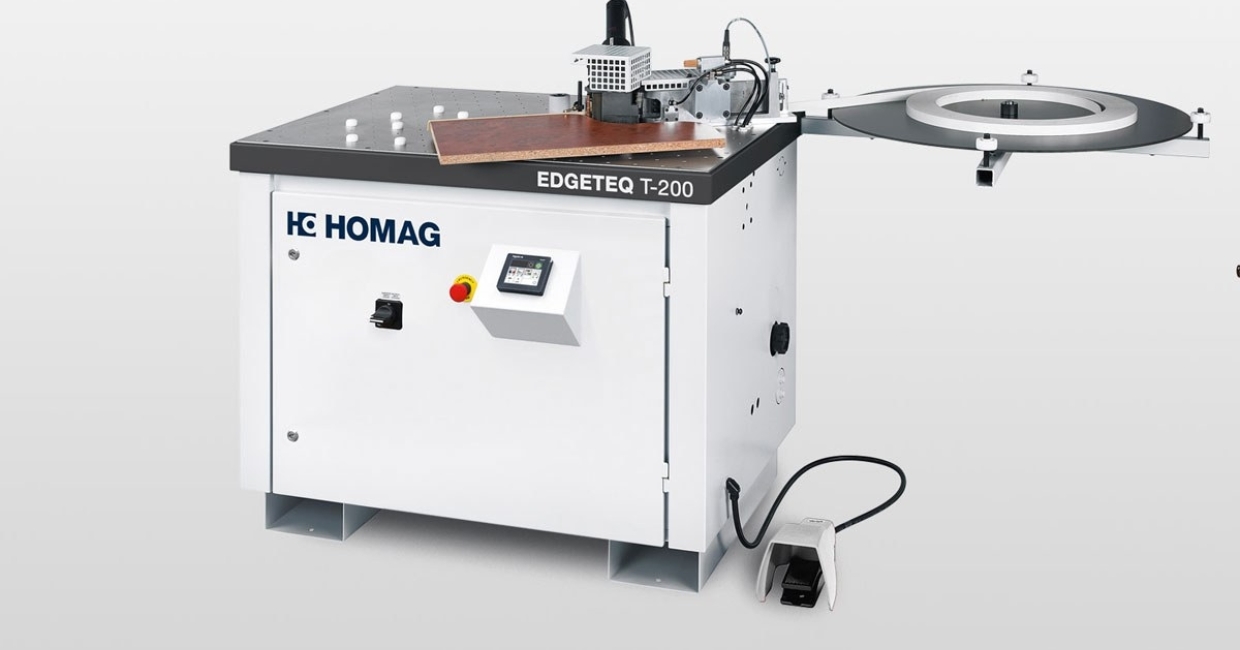

The HOMAG EDGETEQ T-200 offers a flexible alternative, combining shaped-part edge banding with the ability to handle smaller quantities of straight workpieces.
One machine for shaped and straight parts
The EDGETEQ T-200 has been designed around flexibility. Its adjustable worktable can accommodate a wide variety of shaped components, while its design also makes it possible to process straight workpieces economically and safely.
This makes it particularly useful for manufacturers producing bespoke furniture, kitchens, interiors and other applications where component shapes and batch sizes can vary considerably.

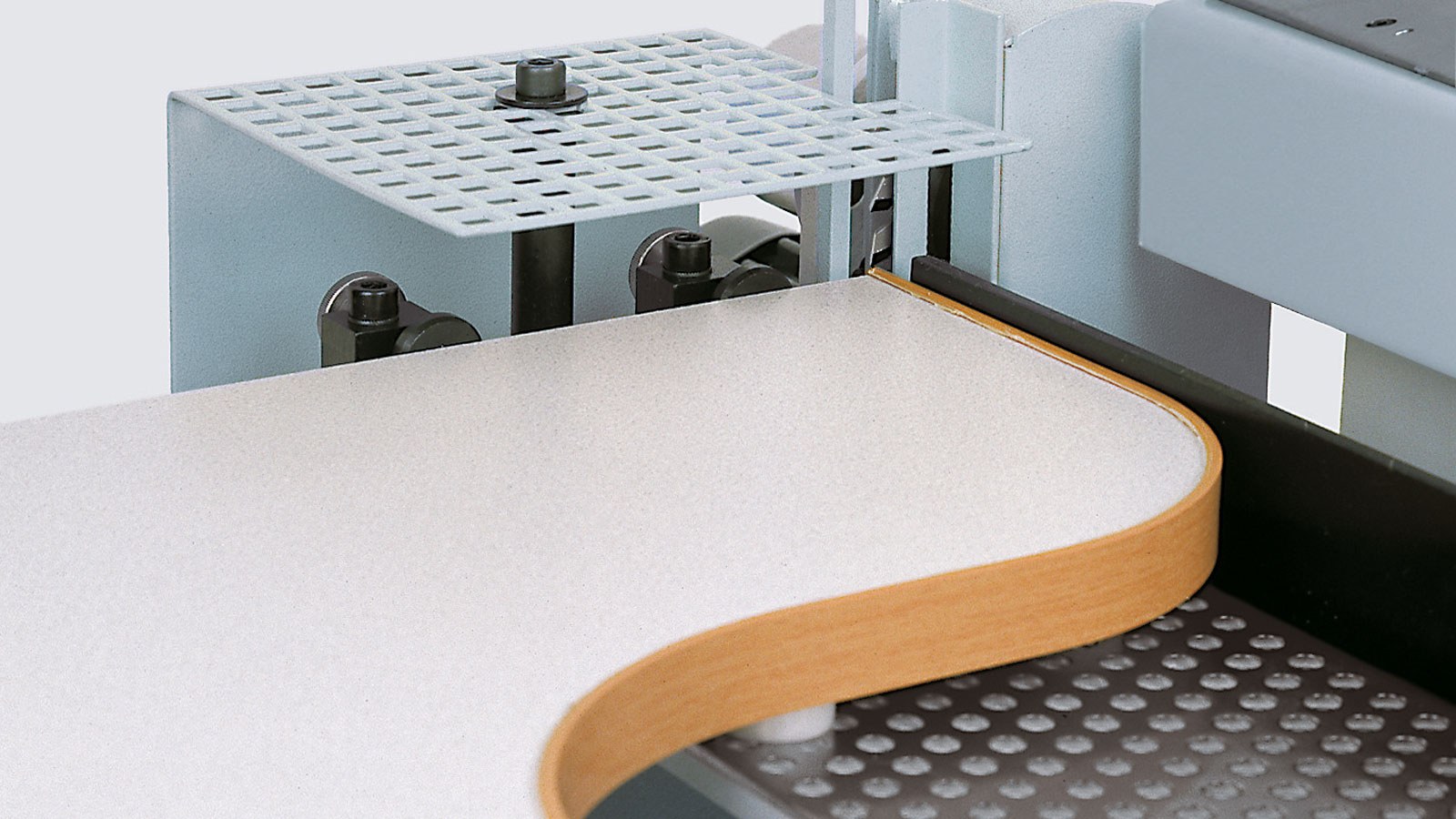

The machine applies adhesive directly to the edge material, which can then be cut to length using a foot switch or, for repetitive production, by entering the required edge length into the digital length counter. Workpieces are positioned using individually adjustable distance cams, allowing shaped components to be processed accurately without the need for a template.
Professional results without a large footprint
Despite its broad capabilities, the EDGETEQ T-200 has a relatively compact footprint, measuring just 2.1m in length and 1.2m in width. It can process workpieces between 10 and 55mm in thickness, with edge material from 0.5 to 3mm and a variable feed speed of 3–9m/min.
For manufacturers with limited workshop space, this combination of capability and compact dimensions makes the T-200 an attractive proposition. It provides a dedicated solution for shaped parts without demanding the floor space associated with larger automated edge banding systems.
Available from stock
For businesses considering an addition to their edge banding capabilities, HOMAG UK has a number of T-200s in stock and available for quick delivery. The T-200 is an ‘out of the box’ solution for shaped part edgebanding but for those who would prefer to see the technology in action before making a decision, an EDGETEQ T-200 is available in the HOMAG UK showroom, where demonstrations can be arranged.
The combination of shaped and straight-part processing, compact dimensions and flexible operation makes the EDGETEQ T-200 a particularly compelling option for manufacturers looking to expand their capabilities without overcomplicating their production setup.
For further information, or to arrange a demonstration and discuss the current offer, contact HOMAG UK on 01332 856500, dialling option 4 for the sales department, or email [email protected].
